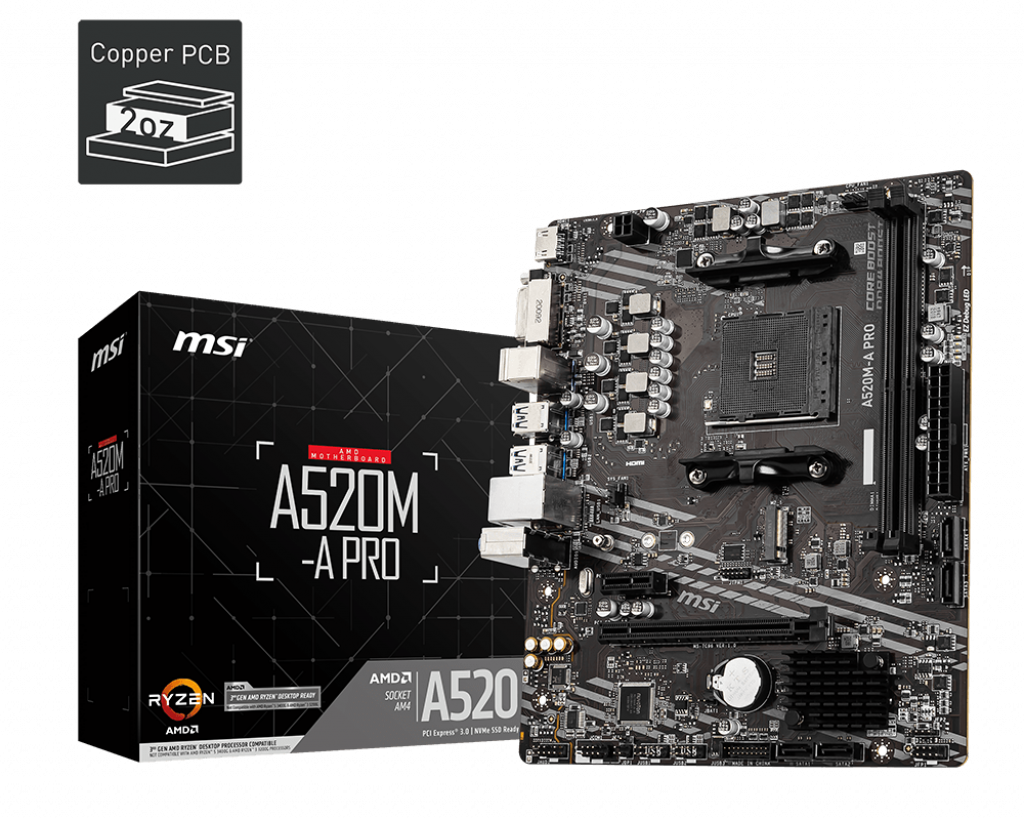

MSI A520M-A PRO Motherboard (AMD AM4 Socket)

RM 315.00
Whatsapp us

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors

AMD A520 Chipset

2x DDR4 memory slots, support up to 64GB 1Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDECSupports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

AMD A520 Chipset4x SATA 6Gb/s ports1x M.2 slot (Key M) (from AMD Processor)Supports PCIe 3.0 1Supports SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesThe supported specification depends on installed processor.

1x 24-pin ATX main power connector1x 4-pin ATX 12V power connector4x SATA 6Gb/s connectors1x M.2 slots (M-Key)1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1xTPM module connector1x Clear CMOS jumper
