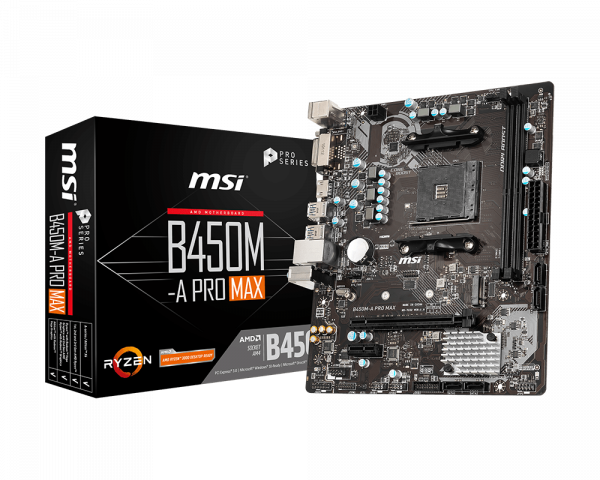

MSI B450M-A PRO MAX Motherboard (AMD AM4 Socket)

RM 389.00
Whatsapp us

Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

AMD® B450 Chipset

2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)For AMD Ryzen Gen3 (R5/R7/R9)2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)For AMD Other CPU2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

1 x PCIe 3.0 x16 slotSupports x16 speed1st, 2nd and 3rd Gen AMD Ryzen™Supports x8 speedRyzen™ with Radeon™ Vega Graphics2nd Gen AMD Ryzen™ with Radeon™ GraphicsA-seriesAthlon™ X4Supports x4 speedAMD® Athlon™ with Radeon™ Vega GraphicsPCIe 2.0 x1 slot

AMD® B450 Chipset4 x SATA 6Gb/s portsSupports RAID 0, RAID1 and RAID 101x M.2 slot (Key M)Supports PCIe 3.0 x4 and SATA 6Gb/s1st, 2nd and 3rd Gen AMD Ryzen™Ryzen™ with Radeon™ Vega Graphics2nd Gen AMD Ryzen™ with Radeon™ GraphicsSupports PCIe 3.0 x2 and SATA 6Gb/sAMD® Athlon™ with Radeon™ Vega GraphicsA-seriesAthlon™ X4Supports 2242/2280/22110 storage devices

1x 24-pin ATX main power connector1x 4-pin ATX 12V power connector4x SATA 6Gb/s connectors2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)1x 4-pin CPU fan connector1x 4-pin system fan connector1x Front panel audio connector2x Front panel connectors1x TPM module connector1x Chassis Intrusion connector1x Serial port connector1x Clear CMOS jumper
